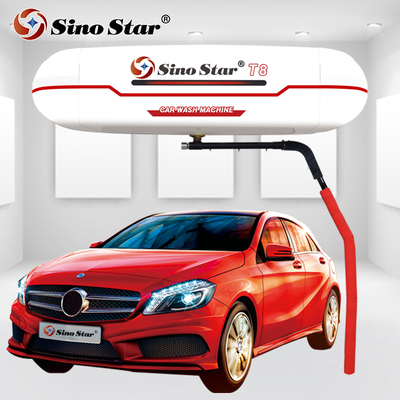

Sino Star T8 stainless steel with shampoo function high pressure touchless car wash machine exoport to Thailand

1.0 Sets
MOQ
Sino Star T8 stainless steel with shampoo function high pressure touchless car wash machine exoport to Thailand
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Model Number: T8
Size: 7500*3500*3200mm (24.6ft *11.48ft *10.5ft)
Material: Stainless Steel
Warranty: 1YEAR
Output Power: 11KW
Product name: Touchless car wash machine fully automatic
Max. Car Size: 5600*2100*2080mm (18.37ft *6.89ft *6.82ft)
Standard Machine Installation Size: 7500*3500*3200mm (24.6ft *11.48ft *10.5ft)
Power Requirements: AC380V/50Hz/3Ph/11KW
Water pump motor power: 11KW / 70Bar working pressure
Air Switch: 100A air switch
Time Consumption: 4.5min/car, 8 hours 100 cars
Type: Car Washer
Información básica
Model Number: T8
Pago y Envío Términos
Packaging Details: Exporting Packages
Supply Ability: 50 Set/Sets per Month
Descripción de producto

Sino star T8 with Shampoo function High pressure touchless car wash machine exoport to Thailand

Product Description

PRODUCT NAME: Touchless car wash machine fully automatic

Model No: T8

Technical Parameters
Size Standard Machine Installation Size L*W*H=7500*3500*3200mm (24.6ft *11.48ft *10.5ft)
Max. Car Size L*W*H=5600*2100*2080mm (18.37ft *6.89ft *6.82ft)
Consumption per car Shampoo Consumption Approx. 40ml/car
Water Consumption Approx. 120L/car
Electricity Consumption Approx. 0.5KW·H/car
Time Consumption 2min/car fast quick wash
Specifications Power Supply Requirements AC380V/50Hz/3Ph/ 11KW, 10smm copper cable
Air Switch 100A air switch
Water Pump Motor Power Germany PINF Pump 11KW / 70Bar working pressure
Remote Control Remote Control
Central Processing Unit PLC Industrial intellient digital control system
Drive System Variable frequency speed control + digital driver
Detection System Intelligent three-dimensional detection system
Sensing System Ultrasound+ Absolute value of the digital encoder, 1 sensors
Packing details Shipment Weight / Volume 2.1Ton / 7.5CBM / 6 Cartons /by 20GP LCL / 2Units in 20GP
Carton A 0.915*1.41*1.15m = 1.439m³ 462kg
Carton B 0.76*1.15*0.97m = 0.82m³ 172.5kg
Carton C 1.165*1.16*2.86m = 3.87m³ 776.5kg
Carton D 0.41*0.56*3.21m = 0.74m³ 441kg
Carton E 3.08*0.305*0.12m = 0.11m³ 36kg
Carton F 6*0.4*0.2m = 0.48m³ 77kg
