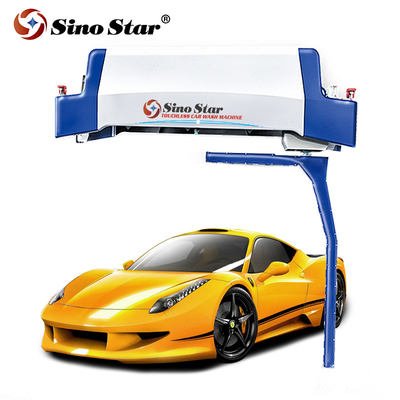

Automatic Washer System Stainless Steel Suppliers 4 Pcs 5.5KW Fans Car Touchless Car Wash Machine S9

1 Set
MOQ
$26,800.00(1 - 4 Sets) $25,996.00(>=5 Sets)
Precio
Automatic Washer System Stainless Steel Suppliers 4 Pcs 5.5KW Fans Car Touchless Car Wash Machine S9
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Model Number: S9
Size: 10000*65000*3500mm
Material: Stainless Steel
Warranty: 3 Years
Output Power: 15 KW
Product name: Automatic
Portable air drying system: 3kw
Washing system of the chassis: 3kw
Sewage disposal system: 5T/h
Car wash(no engine room): 9300*4000*3500 mm
Car wash(contain the engine room): 9300*6200*3500 mm
Rail length(mm): 8200mm
Two guide center distance(mm): 3340mm
Type: Car Washer
Información básica
Model Number: S9
Pago y Envío Términos
Packaging Details: WOODEN
Supply Ability: 50 Set/Sets per Month
Descripción de producto
Specification
Product Name
Automatic car wash machine
Standard Machine Installation Size
L*W*H=8200*3800*3500mm (26.9ft *12.5ft *11.5ft)
Max. Car Size
L*W*H=6000*2500*2080mm (19.69ft *8.20ft *6.82ft)
Time Consumption
4.5min/car, 8 hours 100 cars
Power Supply Requirements
AC380V/50Hz/3Ph/30KW, 16smm copper cable
Air Switch
100A air switch
Water Pump Motor Power
18.5KW/100Bar working pressure, Max. 150Bar
Fan Motor Power
4 pcs 5.5KW blowers total 22KW/ Pressure 12000pa/ Air flow 24000CBM/H
Product Description
The feature of Automatic car wash machine S9:
1. Germany Pinfl pump Max 150 bar;
2. Built-in four 5.5KW air dryers;
3. Intelligent voice prompt and LED screen.
FAQ
1. What size cars S9 can apply for ? ( Length×width×height )
maximum car wash size: 6000×2500×2080mm
2. What's time cost for complete fine wash of S9 car washing machine ?
S9 running one circle spend 28 seconds, complete fine wash with high pressure water spray, wax, foam and air drying totally cost
about 5 mins.

3. How about the air drying result ?
Uses design of air fluid mechanics principle to achieve long-distance high-pressure air cylinder, can reach 90% drying result, the
stability with safety are much more better than the profiling air drying in brush wash machine.
4. What's the cost for wash one car ?
For example in our city, water with electricity cost for one car is about 1.5 RMB, chemicals cost about 1 RMB, total 2.5 RMB
equals USD0.45
5. What's power supply required for running SinoStar car washing machine ?
SinoStar car wash machines require 3 phase industry power supply, in China the standard is 380V/50Hz, if customer require
different voltage or frequency, we have to customize motors from Siemens company, and change accordingly fans, low-voltage
electrical cables, control units, etc.
6. How to make installation and after sale service for SinoStar?
* If there’s an exclusive distributor available in your region, you need to buy from distributor and distributor will support your
installation, training and after sale service.
* If a distributor can’t be found in your region, we can dispatch technician to support your installation and training, but the
traveling expense should be on customer’s account, this will include visa cost, air tickets cost, hotel with restaurant cost, and
customer need to pay for technician salary USD100/day.
7. How to become a distributor ?
* We don't have special condition for a conventional distributor without exclusive right.
* If you want to apply for exclusive dealership in your country or region, the first step you need to purchase a demo machine to
show customers there, and we need to make an agreement with a yearly MOQ.
8. What need to be prepared before machine installation ?
* 3 phase industry power supply, 25Kw.
* Water supply, with a water tank. ( 2000 liters )
* Air compressor with air volume more than 0.67m³/min, could provide stable air pressure more than 0.8Mpa.
* Floor cement thickness need to be more than 20cm, if not enough then need to make six concrete columns for mounting support
frames, floor horizontal error less than 3cm.
* Scaffold 2 pcs.
* Electric Hammer 1 pc, configurated 10, 14, 16 drill each one piece.
* Electric Welder 1 pc.
* Polisher 1 pc.
* Infrared Level 1 pc.
* Rough twine 10 meters.
* Hand Electric Drill 1 pc.
9. What's the warranty of S9 car washing machine ?
We offer 3 years extended warranty for complete machine, all spare parts included, within warranty period, if any parts break
down, we will compensate new parts at free charge, but warranty doesn’t cover courier expense. Normally we will ask customers keep
some spare parts in stock for machine maintenance, and the compensation spare parts will be sent together with next shipment or
through a cheaper way but not by DHL. Meanwhile, warranty is not valid in any of below situation:
* Human damage or operate the machine not follow instruction or under abnormal circumstance.
* Damage due to force majeure, such as wars, floods, earthquakes, lightning, abnormal voltage.
10. What is leading time of SINOSTAR S9 automatic car washing machine price ?
If customer requires same as China standard three phase industry voltage 380V/50Hz, we can provide fast delivery within 7~10 days,
if different with China standard, the delivery schedule will prolong 30 days.
11. What's the harmonization system code of the car wash system ?
HS code: 8424899990
